Name: LRMO-E-CL - PIEZOMOTOR
Availability: InStock

LRMO-E-CL

$186.31 – $383.81

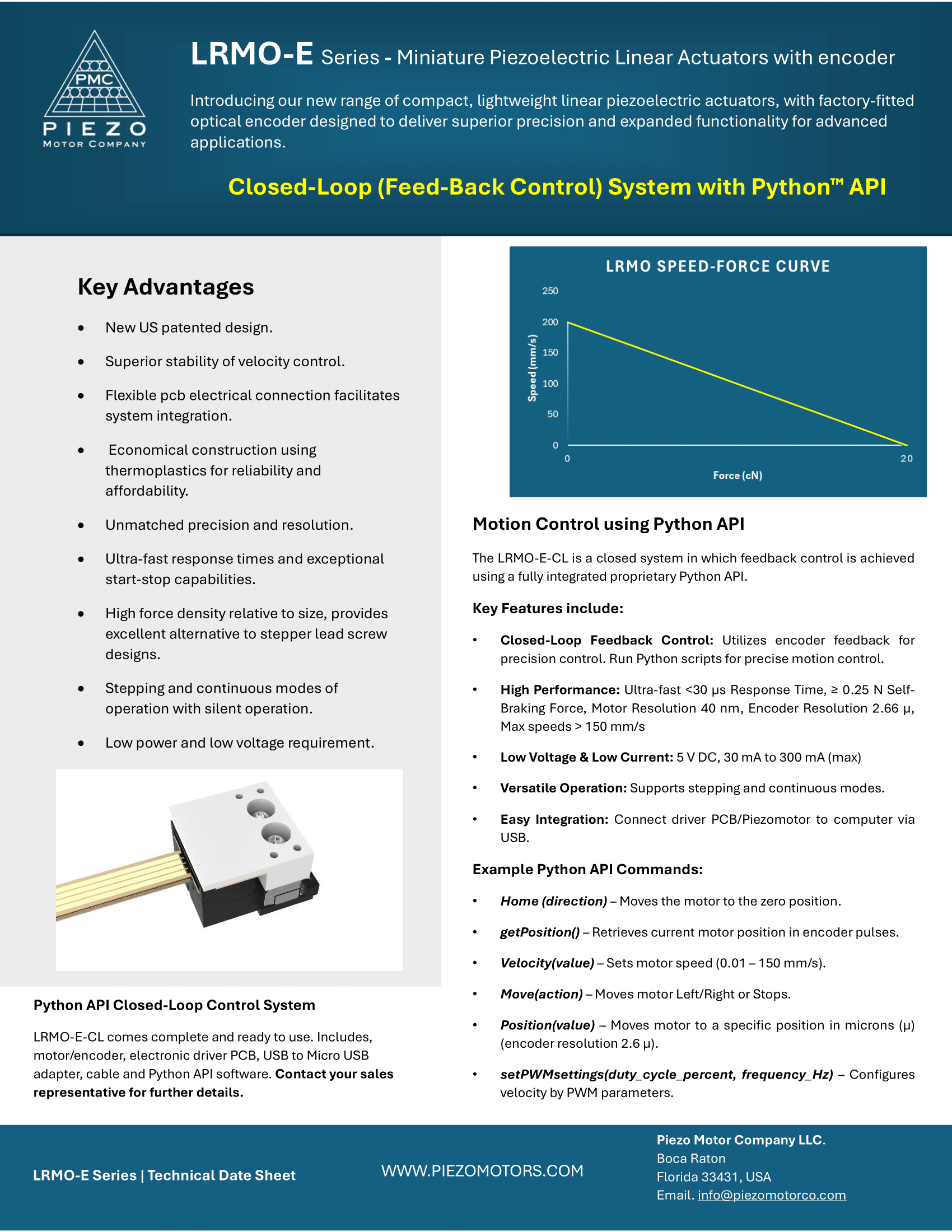

Linear motor with encoder closed-loop System Evaluation Kit. Includes: motor/encoder, electronic driver PCB, Micro USB to USB (5 V) adapter cable, cables and Python API software

SKU: N/A Category: LRMO

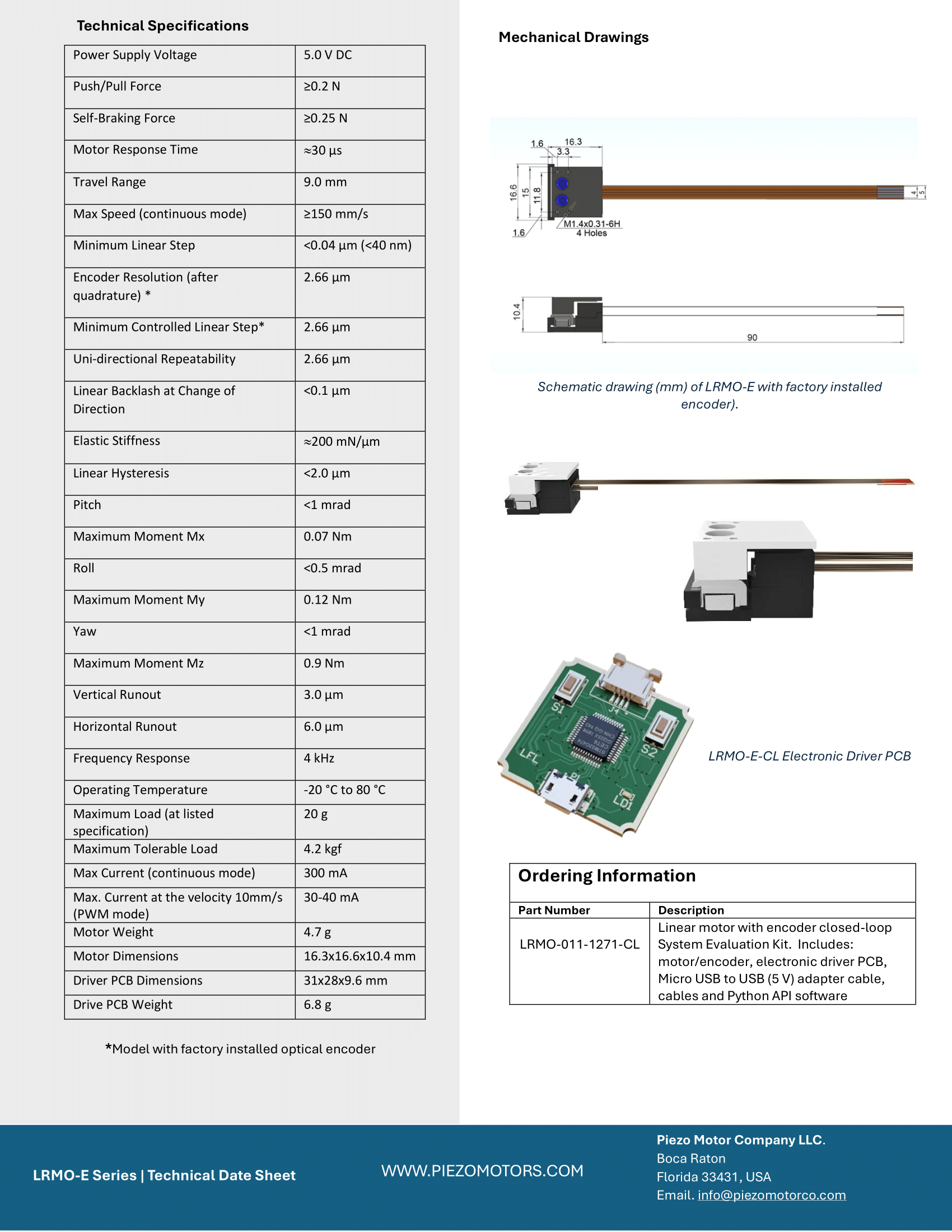

Technical Specifications

Power Supply Voltage	5.0 V DC
Push/Pull Force	≥0.2 N
Self-Braking Force	≥0.25 N
Motor Response Time	»30 µs
Travel Range	9.0 mm
Max Speed (continuous mode)	≥150 mm/s
Minimum Linear Step	<0.04 µm (<40 nm)
Encoder Resolution (after quadrature) *	2.66 µm
Minimum Controlled Linear Step*	2.66 µm
Uni-directional Repeatability	2.66 µm
Linear Backlash at Change of Direction	<0.1 µm
Elastic Stiffness	»200 mN/µm
Linear Hysteresis	<2.0 µm
Pitch	<1 mrad
Maximum Moment Mx	0.07 Nm
Roll	<0.5 mrad
Maximum Moment My	0.12 Nm
Yaw	<1 mrad
Maximum Moment Mz	0.9 Nm
Vertical Runout	3.0 µm
Horizontal Runout	6.0 µm
Frequency Response	4 kHz
Operating Temperature	-20 °C to 80 °C
Maximum Load (at listed specification)	20 g
Maximum Tolerable Load	4.2 kgf
Max Current (continuous mode)	300 mA
Max. Current at the velocity 10mm/s (PWM mode)	30-40 mA
Motor Weight	4.7 g
Motor Dimensions	16.3×16.6×10.4 mm
Driver PCB Dimensions	31x28x9.6 mm
Drive PCB Weight	6.8 g
