ROMO
ROMO-E-KIT
$185.09 – $381.30

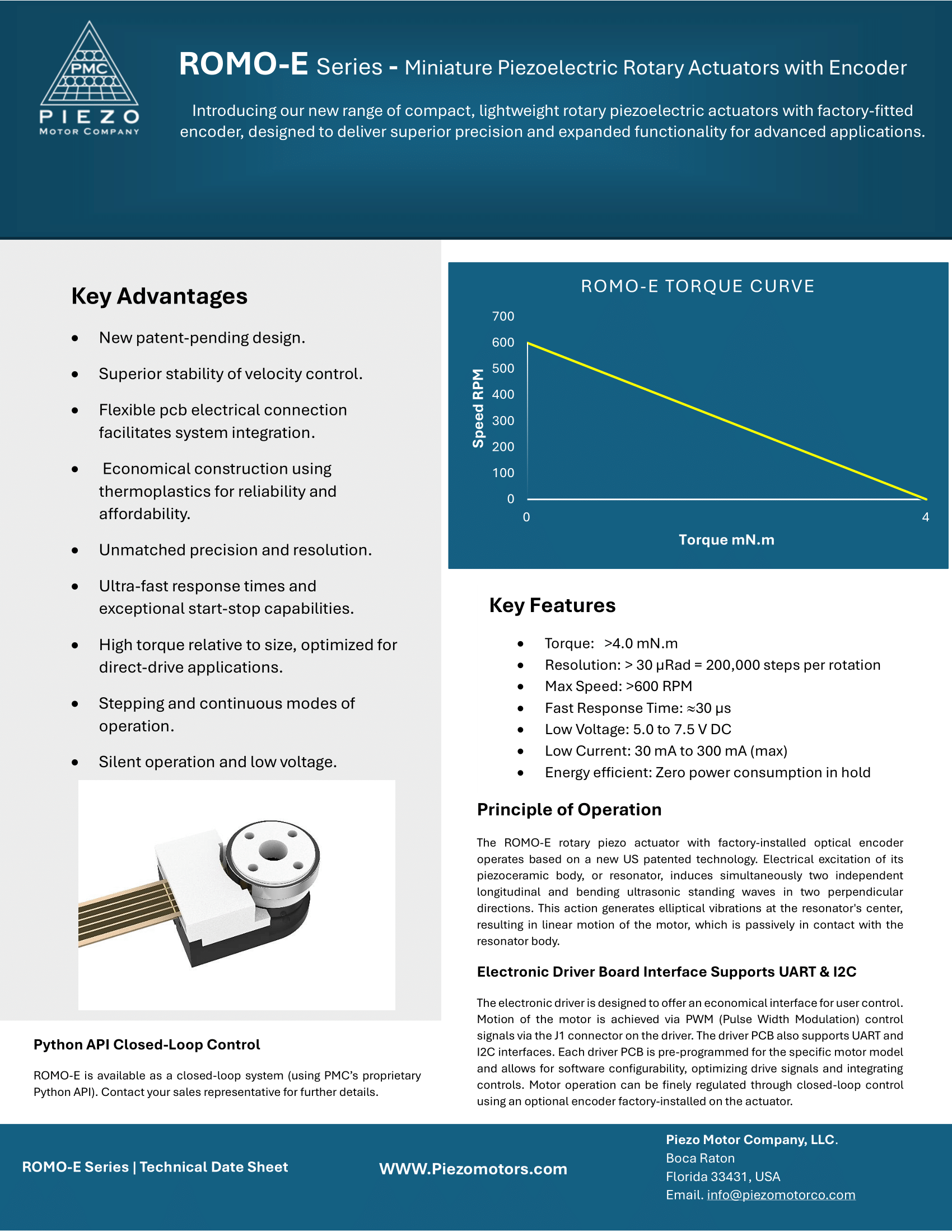

Rotary Motor with Magnetic Encoder Evaluation Kit – (Torque: >4.0 mN.m, Resolution: > 200,000 steps per rotation, Encoder Resolution 1,024 ppr (after quadrature), Minimum Controlled Angular Step 6.1 mrad, Max Speed: >600 RPM, Fast Response Time: < 30 µs, Low Voltage: 7.5 V DC, Low Current < 300 mA), Electronic Driver PCB, 120/240 V AC to 5.0/7.5 VDC power adapter and cables.
| Power Supply Voltage 7.5 V DC Stall Torque ≥ 4 mNm Self-Braking Torque ≥ 5 mNm Actuator Response Time < 30 µs Max Speed > 600 rpm Minimum Angular Step < 30 µrad Encoder Resolution (after quadrature) 1,024 ppr Minimum Controlled Angular Step 6.1 mrad Uni-directional Repeatability 6.1 mrad Angular Backlash 30 µrad Angular Hysteresis 30 µrad Frequency Response 4 kHz Operating Temperature -20 °C to 80 °C Maximum Axial Load 200 g Maximum Radial Load 200 g Moment of Inertia 29.2 g·mm² Max Current over velocity range 300 mA Rotor Runout ≤50 µm Actuator Weight 6.3 g Actuator Dimensions (no shaft) 13 x 19 x 9.1 mm Driver PCB Dimensions 28 X 31 X 9.6 mm Driver PCB Weight 6.8 g |
| Quantity | 1-5, 6-25, 25-100, 100-500 |
|---|---|
| Part Number | ROMO-011-1371 |
