ROMO-KIT

$173.25 – $356.91

Rotary Motor Evaluation Kit – includes ROMO motor without encoder (Torque: >4.0 mN.m, Resolution: > 200,000 steps per rotation, Max Speed: >600 RPM, Fast Response Time: 30 µs, Low Voltage: 7.5 V DC, Low Current: < 300 mA), Electronic Driver PCB, 120/240 V AC to 5.0/7.5 VDC power adapter and cables



SKU: N/A Category:
Technical Specifications

Part No. (Non-Encoder Version) ROMO-010-0370
Power Supply Voltage* 5.0 to 7.5 V DC
Stall Torque ≥ 4 mNm
Self-Braking Torque ≥ 5 mNm
Actuator Response Time »30 µs
Max Speed > 600 rpm
Minimum Angular Step »30 µrad
Angular Backlash 30 µrad
Angular Hysteresis 30 µrad
Frequency Response 4 kHz
Operating Temperature -20 °C to 80 °C
Maximum Axial Load 200 g
Maximum Radial Load 200 g
Moment of Inertia 29.2 g·mm²
Max Current over velocity range 30 mA to 300 mA
Rotor Runout ≤50 µm
Actuator Weight 6.3 g
Actuator Dimensions (no shaft) 13 x 18.7 x 8.2 mm
Driver PCB Dimensions 28 X 31 X 9.6 mm
Driver PCB Weight 6.8 g



[video_player file=”https://piezomotors.com/wp-content/uploads/2024/09/ROMO-motion.mp4″]



[video_player file=”https://piezomotors.com/wp-content/uploads/2024/09/ROMO-360.mp4″]

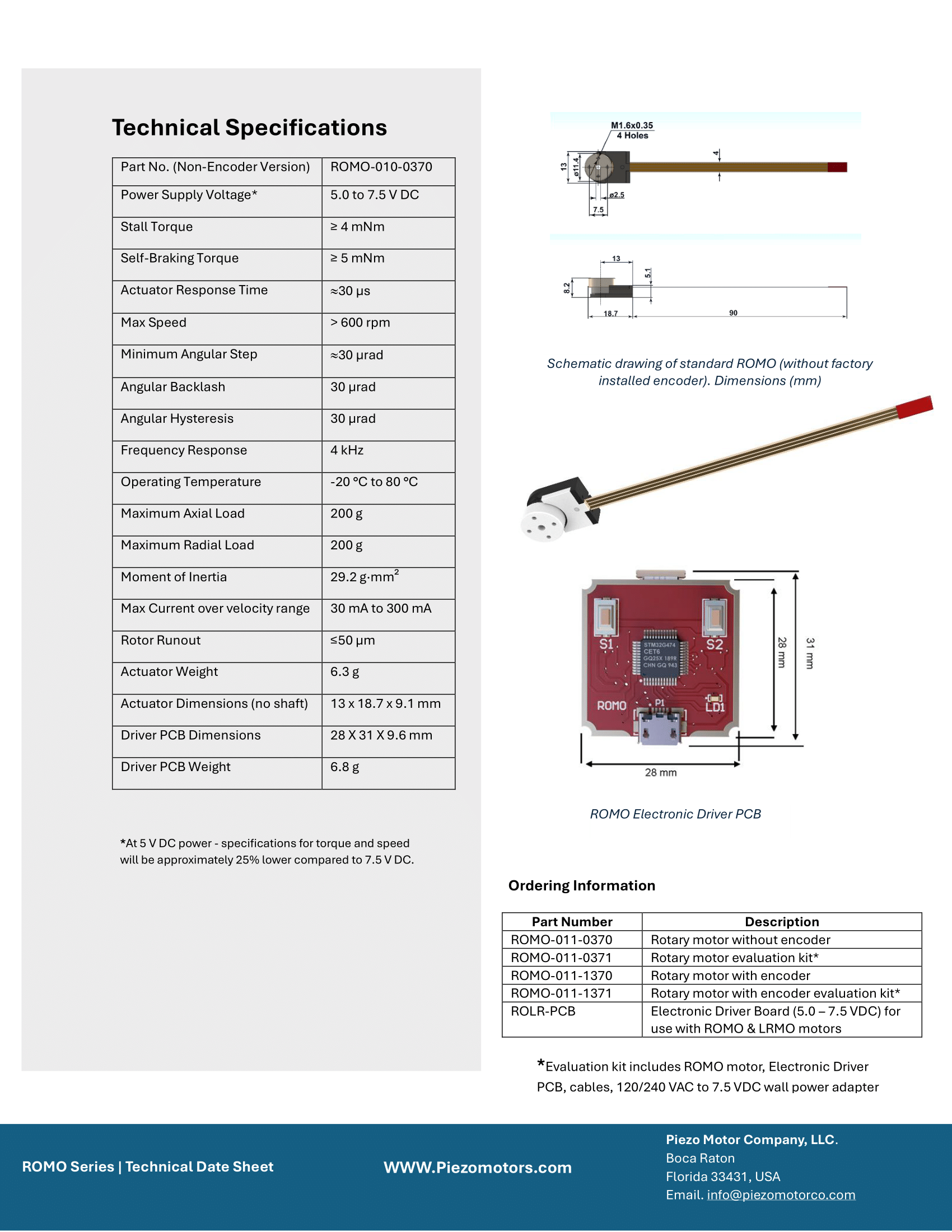

ROMO brochure_05162025





Quantity

1-5, 6-25, 25-100, 100-500
Part Number

ROMO-011-0371
