Linear Motor with Encoder



Get A Qoute
SKU: N/A Category:
Power Supply Voltage 5.0 V DC
Push/Pull Force ≥0.2 N
Self-Braking Force ≥0.25 N
Motor Response Time< 30 µs
Travel Range 9.0 mm
Max Speed (continuous mode) ≥200 mm/s
Minimum Linear Step <0.04 µm
Encoder Resolution (after quadrature) * 2.66 µm
Minimum Controlled Linear Step* 2.66 µm
Uni-directional Repeatability 2.66 µm
Linear Backlash at Change of Direction <0.1 µm
Elastic Stiffness < 200 mN/µm
Linear Hysteresis <2.0 µm
Pitch* <1 mrad
Maximum Moment Mx* 0.07 Nm
Roll* <0.5 mrad
Maximum Moment My* 0.12 Nm
Yaw* <1 mrad
Maximum Moment Mz* 0.9 Nm
Vertical Runout* 3.0 µm
Horizontal Runout* 6.0 µm
Frequency Response 4 kHz
Operating Temperature -20 °C to 80 °C
Maximum Load (at listed specification) 20 g
Maximum Tolerable Load 4.2 kgf
Max Current (continuous mode) 300 mA
Max. Current at the velocity 10mm/s (PWM mode) 30-40 mA
Motor Weight 4.7 g
Motor Dimensions 16.3×16.5×5.7mm
Driver PCB Dimensions 31x28x9.6 mm
Drive PCB Weight  20 g

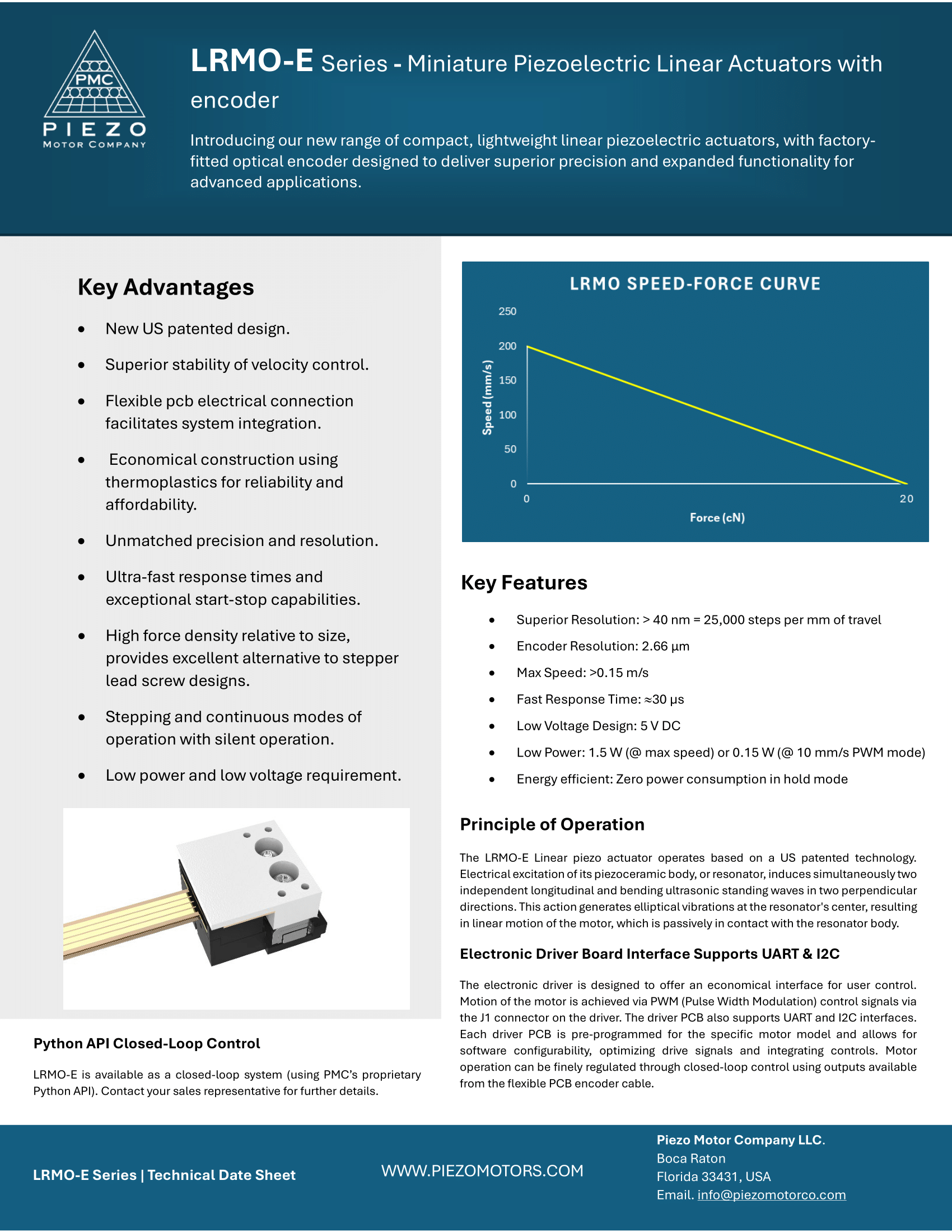

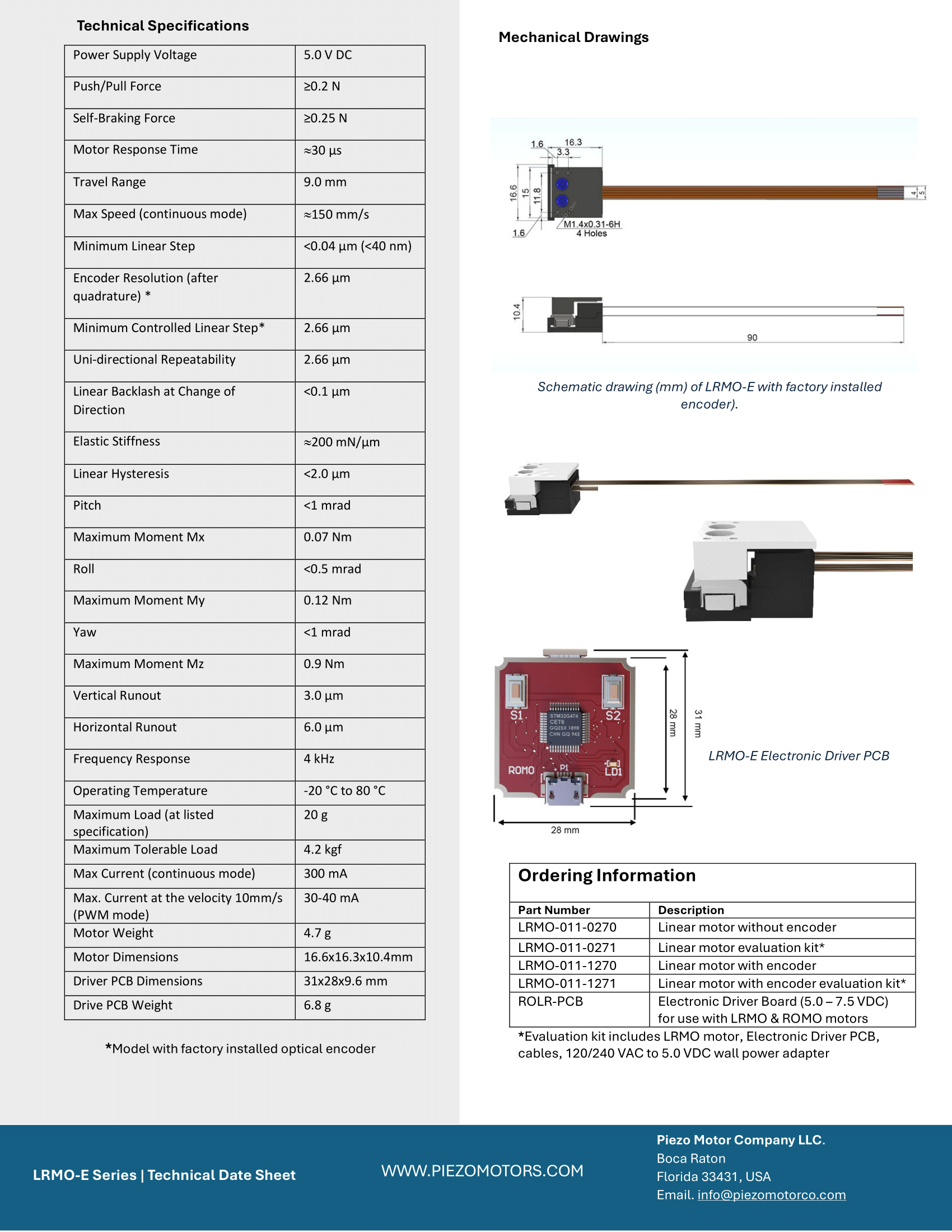

LRMO-E brochure09182024

Quantity

1-5, 6-25, 25-100, 100-500

Part Number

LRMO–011-1270
